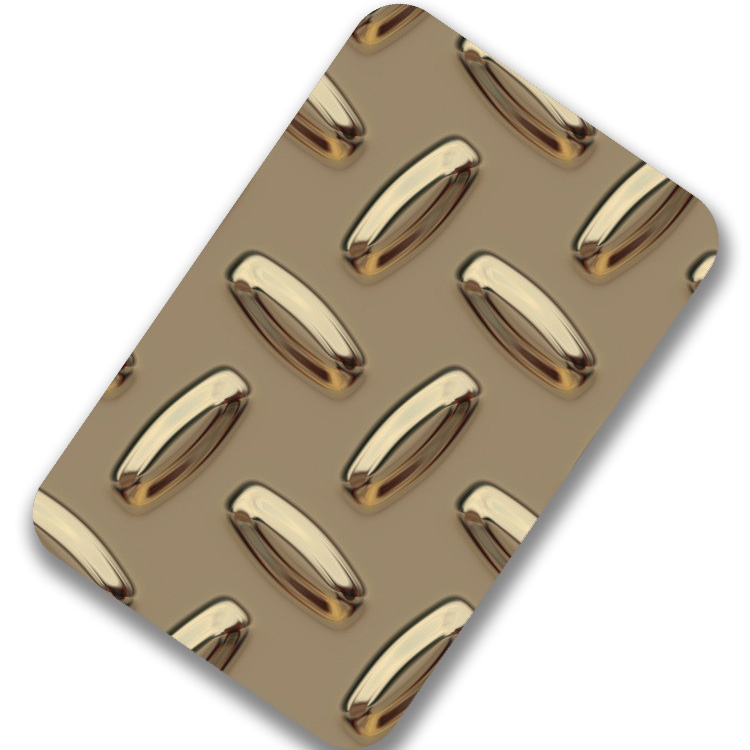

304 304L 316 316L Non-Slip Stainless Steel Checkered Sheets Tear Drop Diamond Floor Plate with Welding Punching Cutting Service

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Key attributes

Thickness
0.3-3.0mm
Tolerance
±1%
Steel Grade
316, L1, 304
Surface Finish
TSHS
Invoicing
by actual weight
Place of Origin
Guangdong, China
Standard
JIS
Grade
200 300 400 series
Delivery Time
15-21 days
Brand Name
real metal
Application
decoration
Width
100-1500mm
Certificate
BIS, JIS, GS, ISO9001
Processing Service

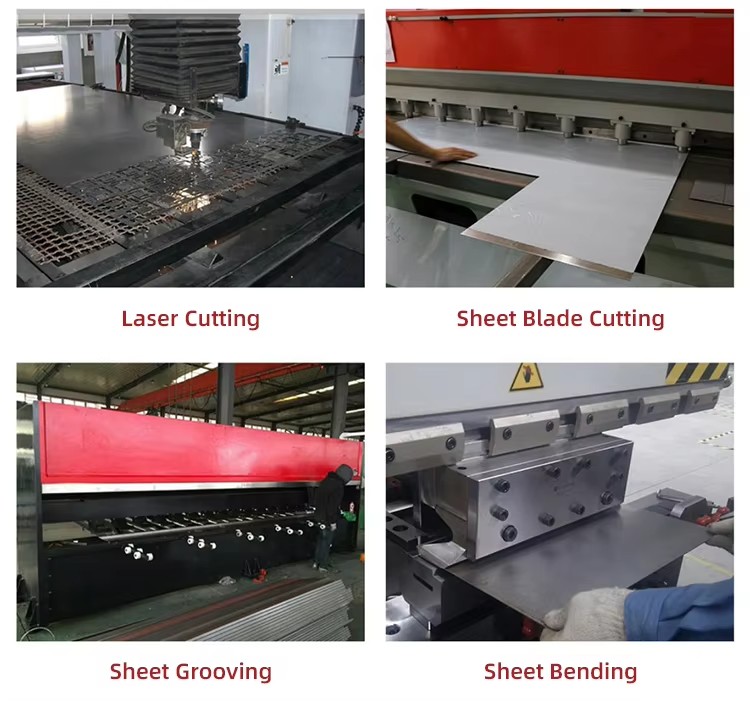

Bending, Welding, Decoiling, Punching, Cutting
Product name
Checkered Stainless Steel Sheet
Surface
Checkered
Edge
Mill Edge Slit Edge
Price Term
CIF CFR FOB EX-WORK
Packing
Standard Sea-worthy Packing
Sample
Avaliable
Quality
Inspection
Origin
Grand
Type
Plate
Certification
ISO

Packaging and delivery

Selling Units
Single item
Single package size
10X10X3 cm
Single gross weight
2.000 KG

Product descriptions from the supplier

详情图片_01

What Is Stainless Steel Checker Plate?

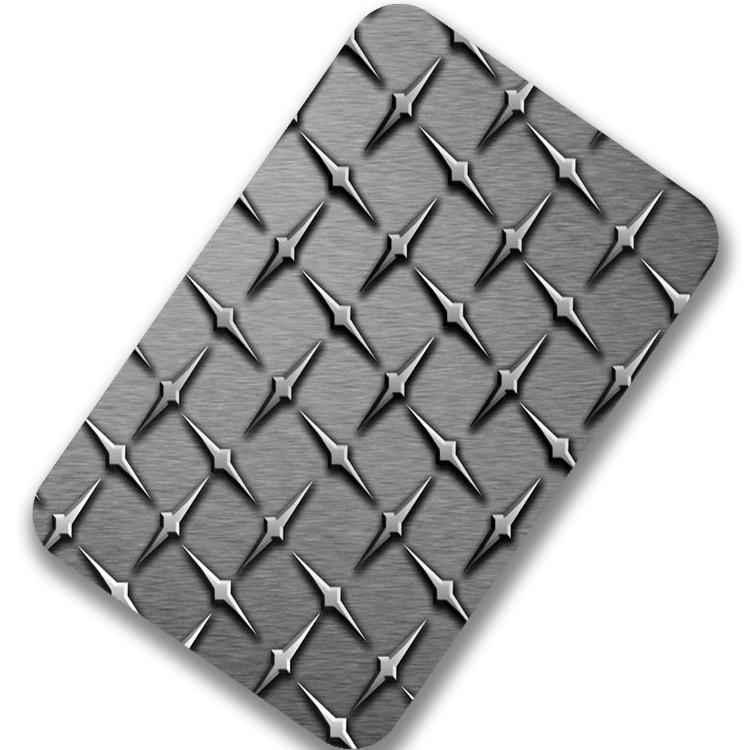

Generally, Stainless steel checkered plate is manufactured by cold rolling sheet and hot rolling stainless steel sheet..stainless steel checker plate is made of stainless steel through embossing process. It has diamond-shaped patterns on the surface to improve its decorative effect and anti-slip performance. So it is also called diamond plate, tread plate, and chequer plate. Due to the excellent corrosion resistance and slip resistance of the SS checker plate, it has been used in many industries. The pattern design is also constantly updated and improved. There are dozens of patterns to choose from. The most popular patterns are chequered patterns, diamond patterns, lentils patterns, leaves patterns, etc.


详情图片_02There are two different production processes. A kind of stainless steel checker plate is rolled by the rolling mill when producing stainless steel. The thickness is about 3-6mm, and it is annealed and pickled after hot rolling. The process is as follows:
Stainless steel billet → Hot rolling → Hot annealing and pickling line → Leveling machine, tension leveller, polishing line →Cross-cutting line → Hot-rolled stainless steel checkered plate.

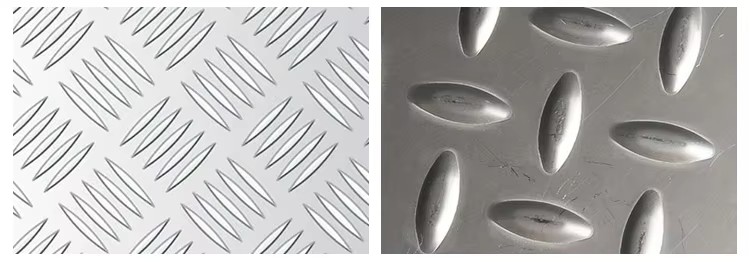

This kind of checker plate is flat on one side and patterned on the other. It is more commonly used in the chemical industry, railway vehicles, platforms and other applications where strength is required.The other kind of stainless steel diamond plate is made of hot-rolled or cold-rolled stainless steel by mechanical stamping. These products are concave on one side and convex on the other side. They are often used for decoration purposes.详情图片_03

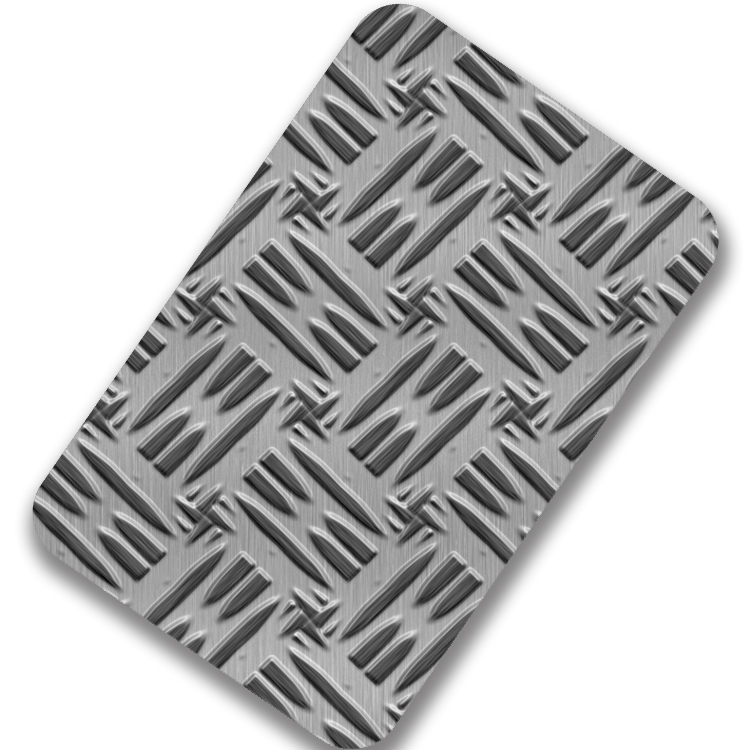

5-bars Checker Plate
SS Checker Plate

详情图片_04

Checkered plate stainless steel comes in diverse sizes.
The most popular size is 48" by 96", and 48" by 120", 60" by 120" are also common sizes. The thickness ranges from 1.0mm to 4.0mm.
Item
Stainless Steel Checker Plate
Raw Material
Stainless steel sheet (hot rolled and cold rolled)
Grades
201, 202, 301, 304, 304L, 310S, 309S, 316, 316L, 321, 409L, 410, 410S, 420, 430, 904L, etc.
Thickness
1mm-10mm
Width
600mm – 1,800mm
Pattern

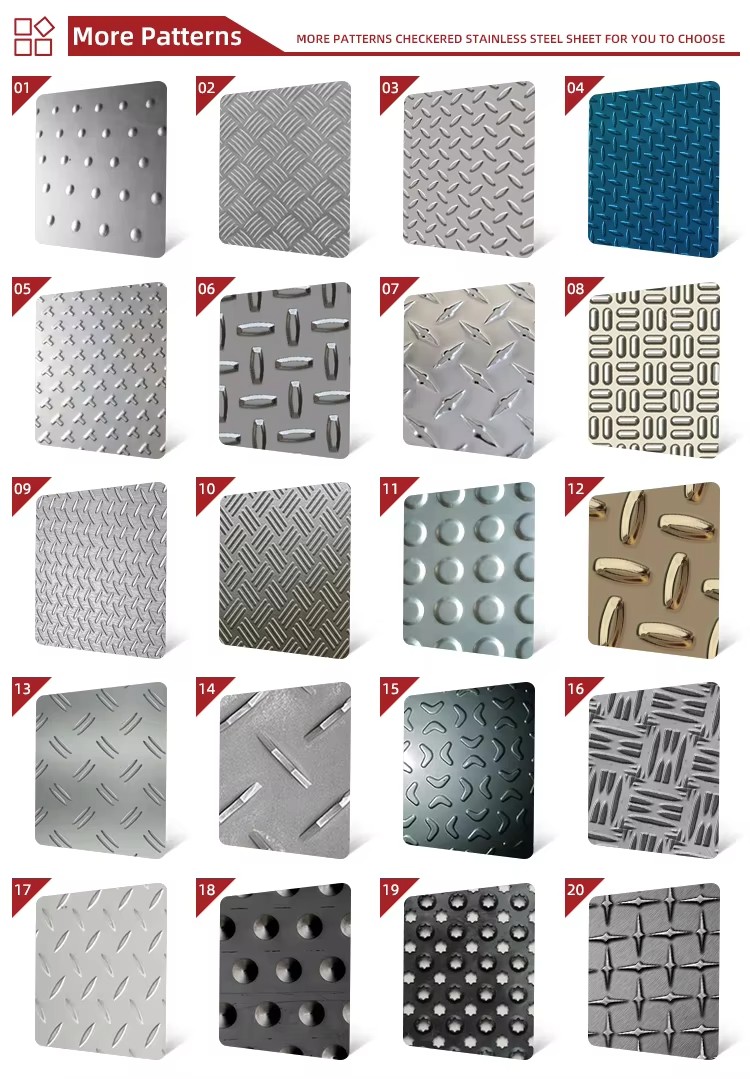

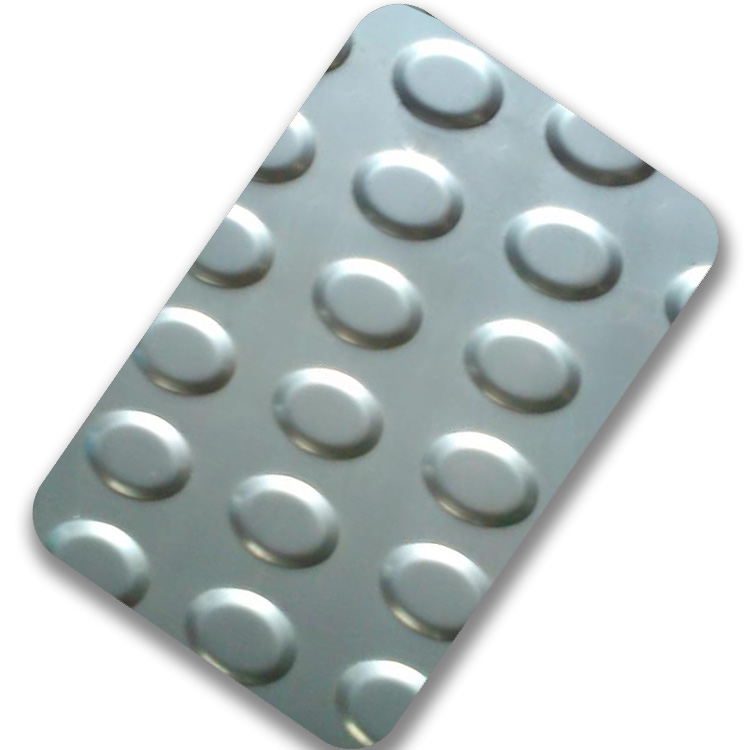

Chequered pattern, diamond pattern, lentils pattern, leaves pattern, etc.
Finish
2B, BA, No. 1, No. 4, mirror, brush, hairline, chequered, embossed, etc.
Package
Strong wooden case, metal pallet and customized pallet are acceptable.

Common Grades of Stainless steel Checker Plate

Same as other stainless steel products, the stainless steel checker plate also has many grades to choose from. Here we make a brief table sheet that introduces the common grades of the SS checked plate for you
American Standard
European Standard
Chinese Standard
Cr Ni Mo C Cu Mn
ASTM 304
EN1.4301
06Cr19Ni10
18.2 8.1 – 0.04 – 1.5
ASTM 316
EN1.4401
06Cr17Ni12Mo2
17.2 10.2 12.1 0.04 – –
ASTM 316L
EN1.4404
022Cr17Ni12Mo2
17.2 10.1 2.1 0.02 – 1.5
ASTM 430
EN1.4016
10Cr17
Add.188.022.6.1345

详情图片_05详情图片_06详情图片_07详情图片_08详情图片_09详情图片_10详情图片_111. Excellent Corrosion Resistance;Resistant to extremely high temperature

The checked plate made of stainless steel is more resistant than ordinary carbon and galvanized steel sheets. Besides, the Cr element in stainless steel improves the atmospheric corrosion resistance, especially in chloride and alkaline corrosion.
2. Great Anti-slipping Performance
One of the biggest characteristics of stainless steel checker plate is that it has good anti-skid features due to concave and convex patterns. This can provide all-around traction and make it very practical.
3. High Workability
The plate is easy to weld, cut, form and machine with proper equipment. In addition, this processing procedure does not damage its mechanical properties.
4. Attractive Finish;Very rigid surface can stand heavy wear and tear.
It has high-quality modern appearance and strong metallic texture. The silver-grey finish and raised diamond pattern make it more attractive and decorative. Besides, it has many different patterns to choose from to meet different application needs.
5. Long Lifetime & Easy to Clean
It has a long lifespan of more than 50 years. Also, it is easy to clean and almost maintenance-free.

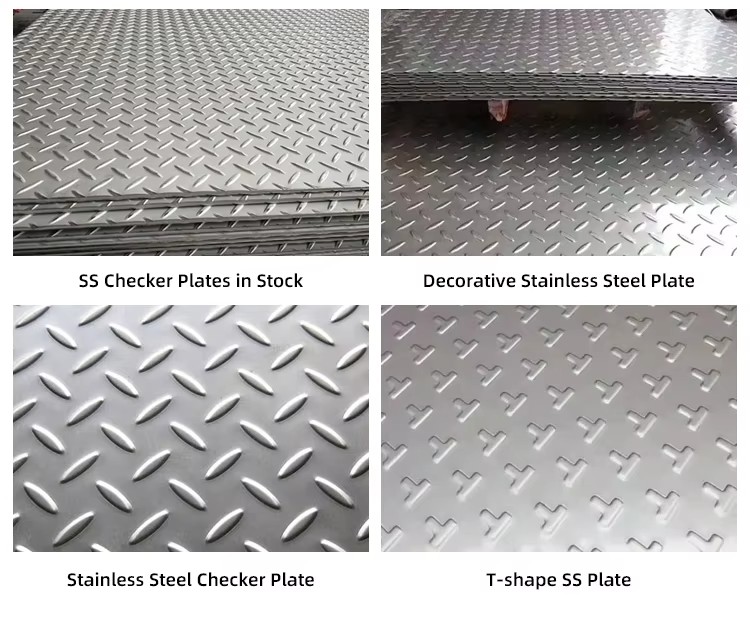

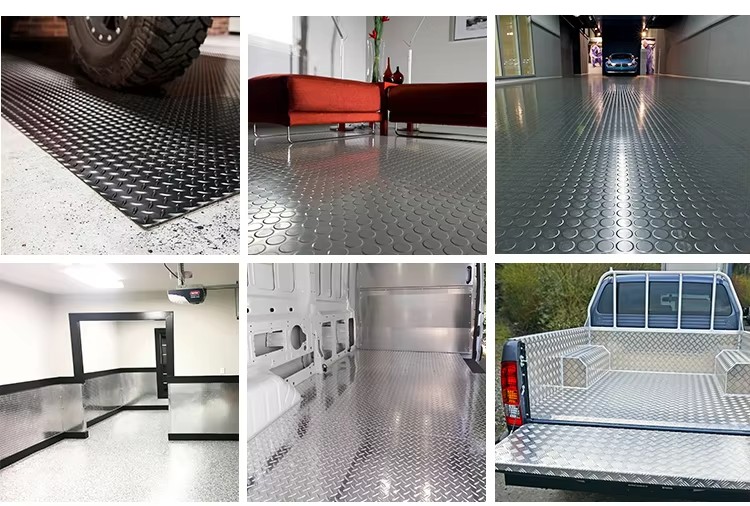

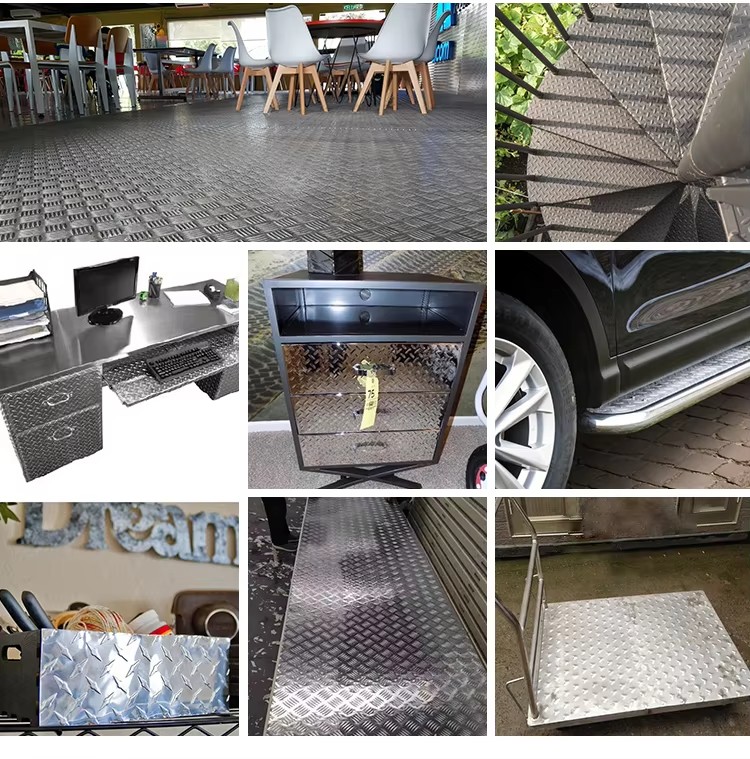

详情图片_12详情图片_13                                                                                                                                 Because of its unique features and anti-skip texture, stainless steel checker plate have a wide range of applications worldwide.Especially, it is suitable for food machinery, pharmaceutical machinery, electronic weighing, refrigerator, cold storage,buildings, water heater, bathtub,dinnerware,packaging, transmission belts, automatic doors and car system. It includes:

1.Construction: floor decking sheets, roofing panels, wall cladding, garages, storage system, etc.
2. Industry: engineer processing,loading ramps, packing, printing, logistics equipment, etc.
3. Decoration: elevator cabs, building curtain walls, cold storage,ceilings, special ornamental projects, etc. 4. Transportation: cargo trailer, the interior of vehicles, automobile stairs, subway station, trailer beds, etc. 5. Road Protection: walkways, stair pedals, trench covers, pedestrian bridges, escalator approaches,
etc.
6. Other Uses: store signs, displays, bars, toolboxes, counters, emergency fire landings, food preparation areas, dinnerware,cupboard, water heater, kitchen utensil, ship deck, etc.

详情图片_14详情图片_15详情图片_16详情图片_17详情图片_18
